MEDVOLT M7

100% ELECTRIC LLAUT

Electric engine, classic soul

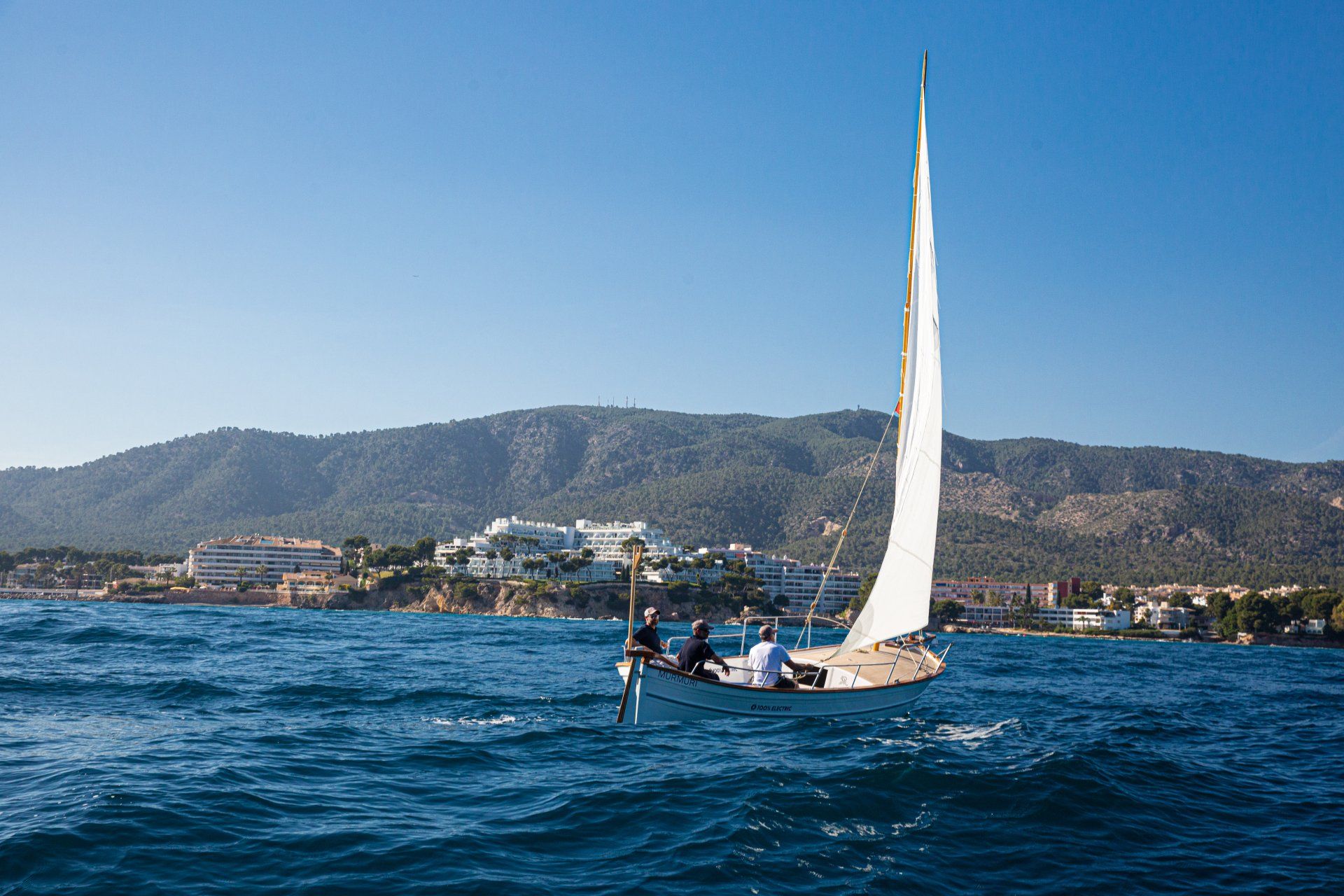

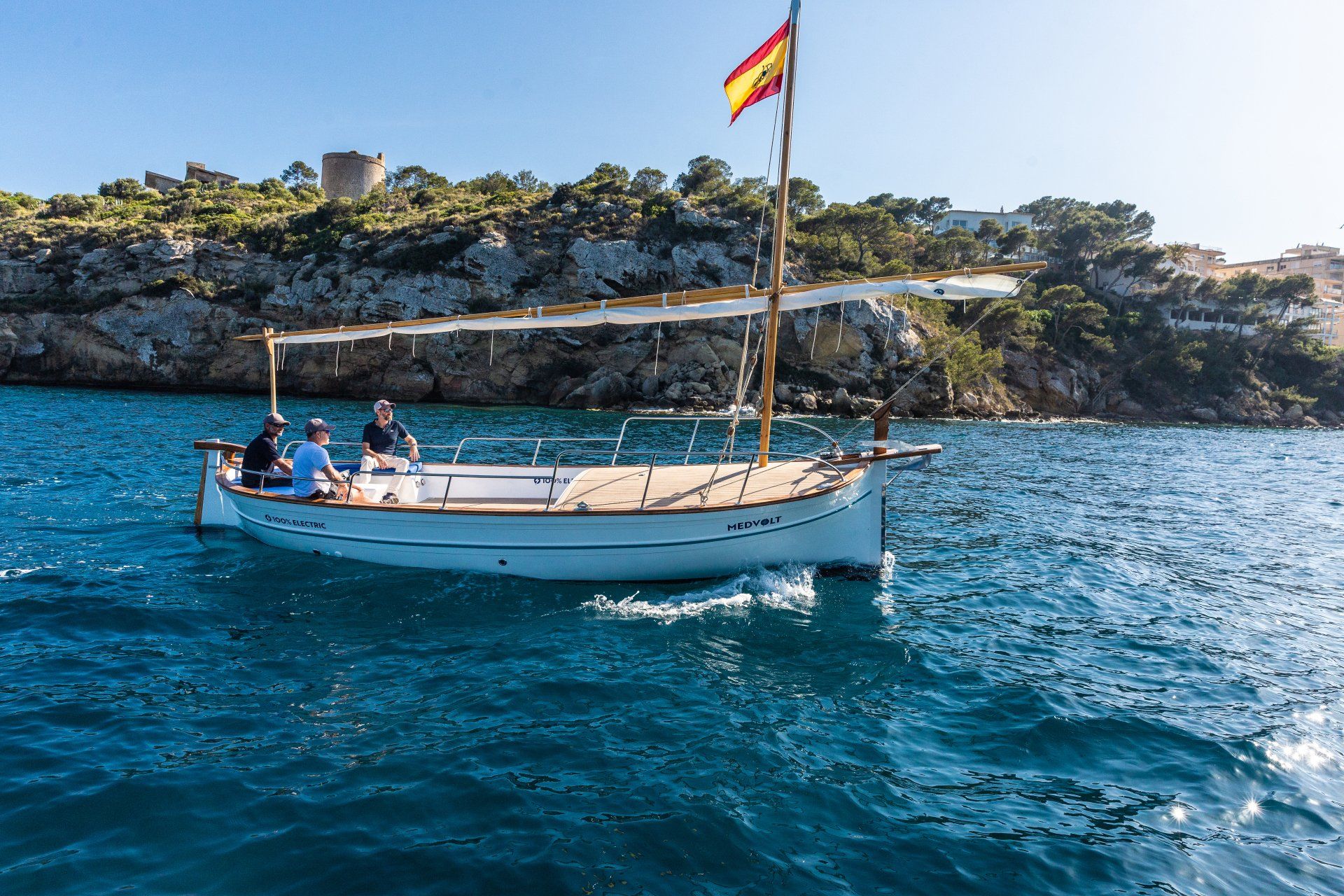

For this project we have wanted to unite tradition and the latest technologies. We have developed a new Llaut, based on the typical Mallorcan llaut that has proven its effectiveness and suitability for our seas for generations. And the most modern design and manufacturing techniques available today have been applied. And most importantly, it has been equipped with a state-of-the-art 100% electric motor, which ensures optimum performance and total respect for the environment, with minimal maintenance. The 'mestres d'aixa' and Latin sailing experts have been used to provide the Llaut with a traditional Latin sail, which ensures an authentic sailing experience and the preservation of a very important aspect of the local culture.

100% electric, 100% Mediterranean

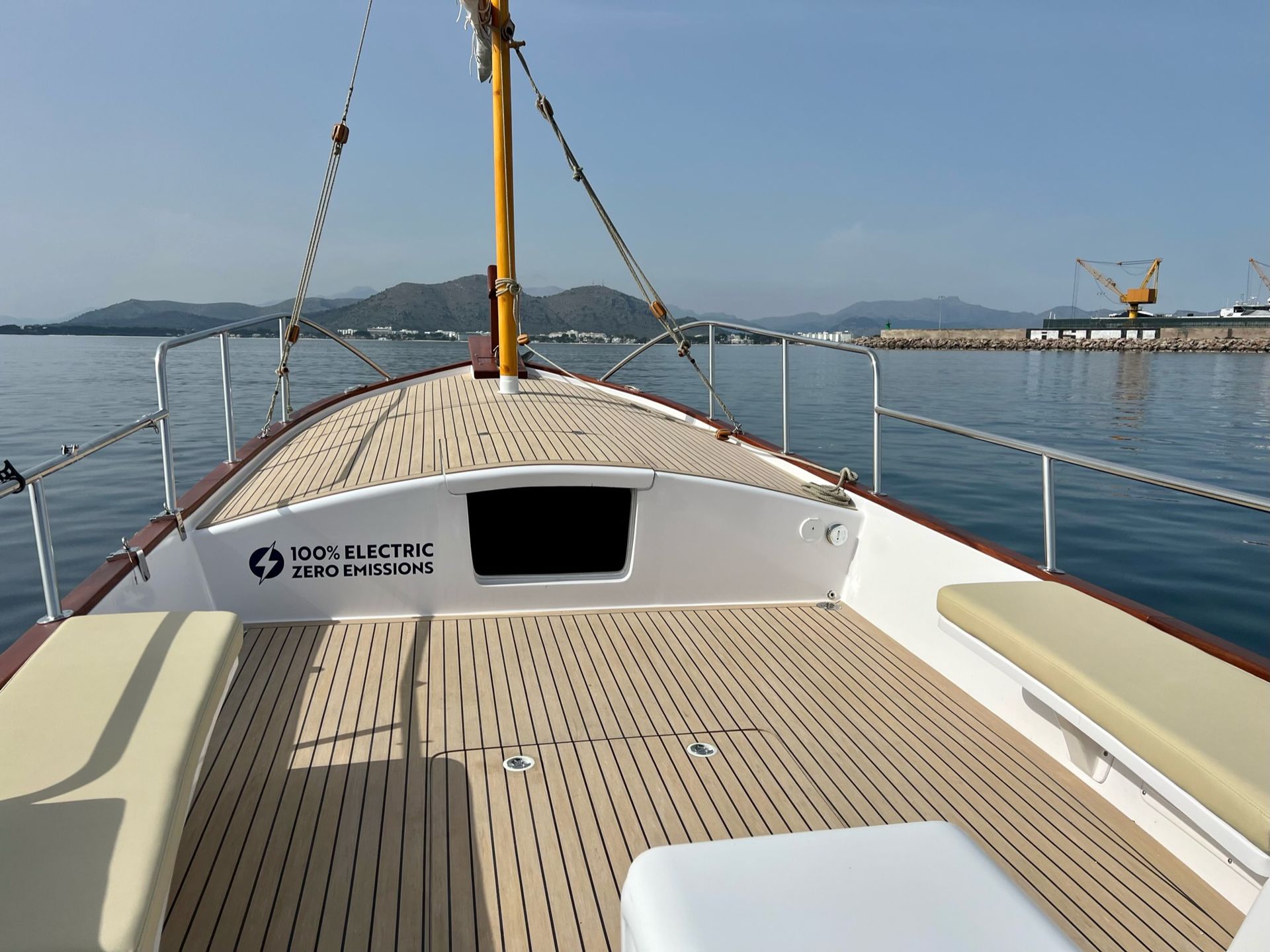

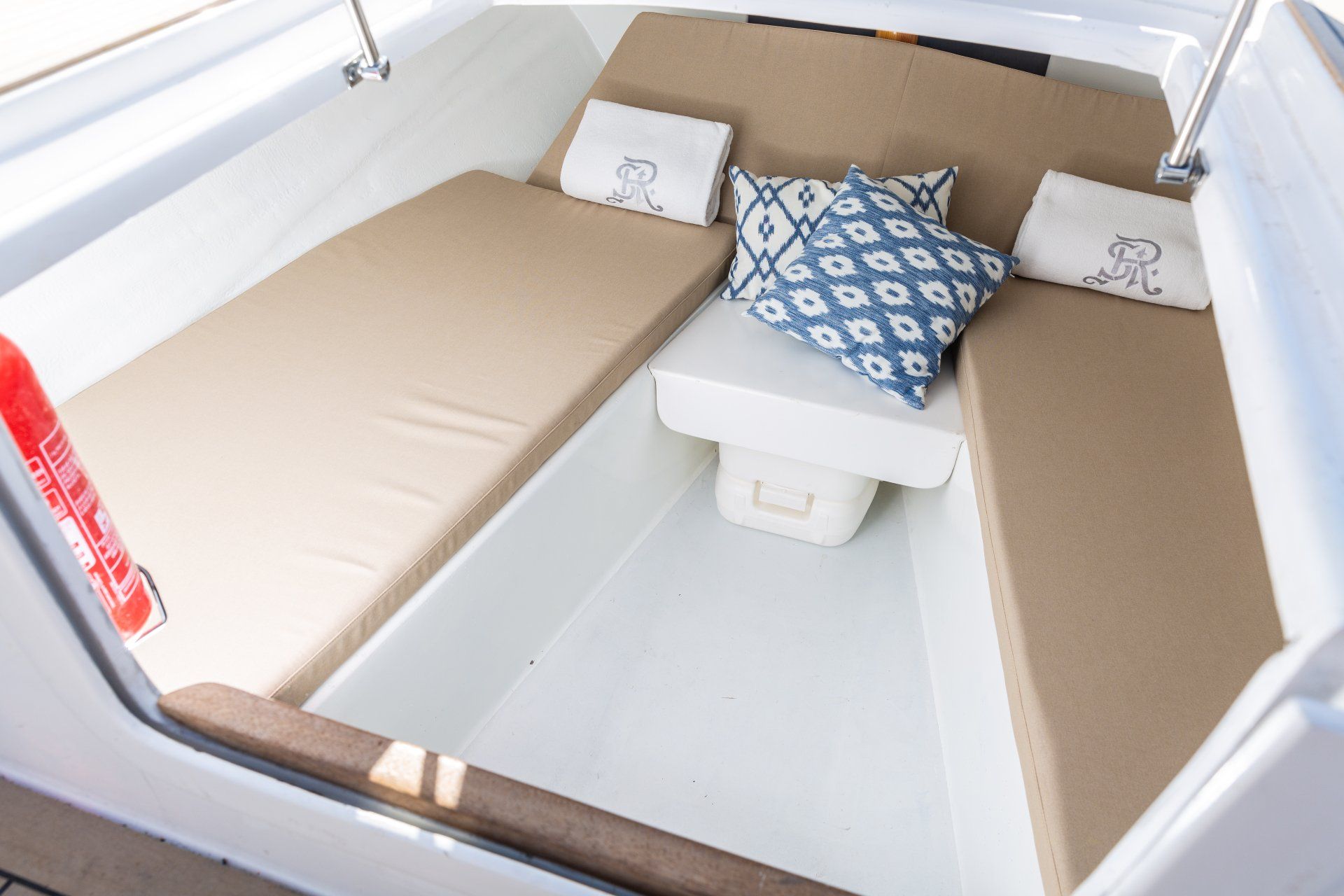

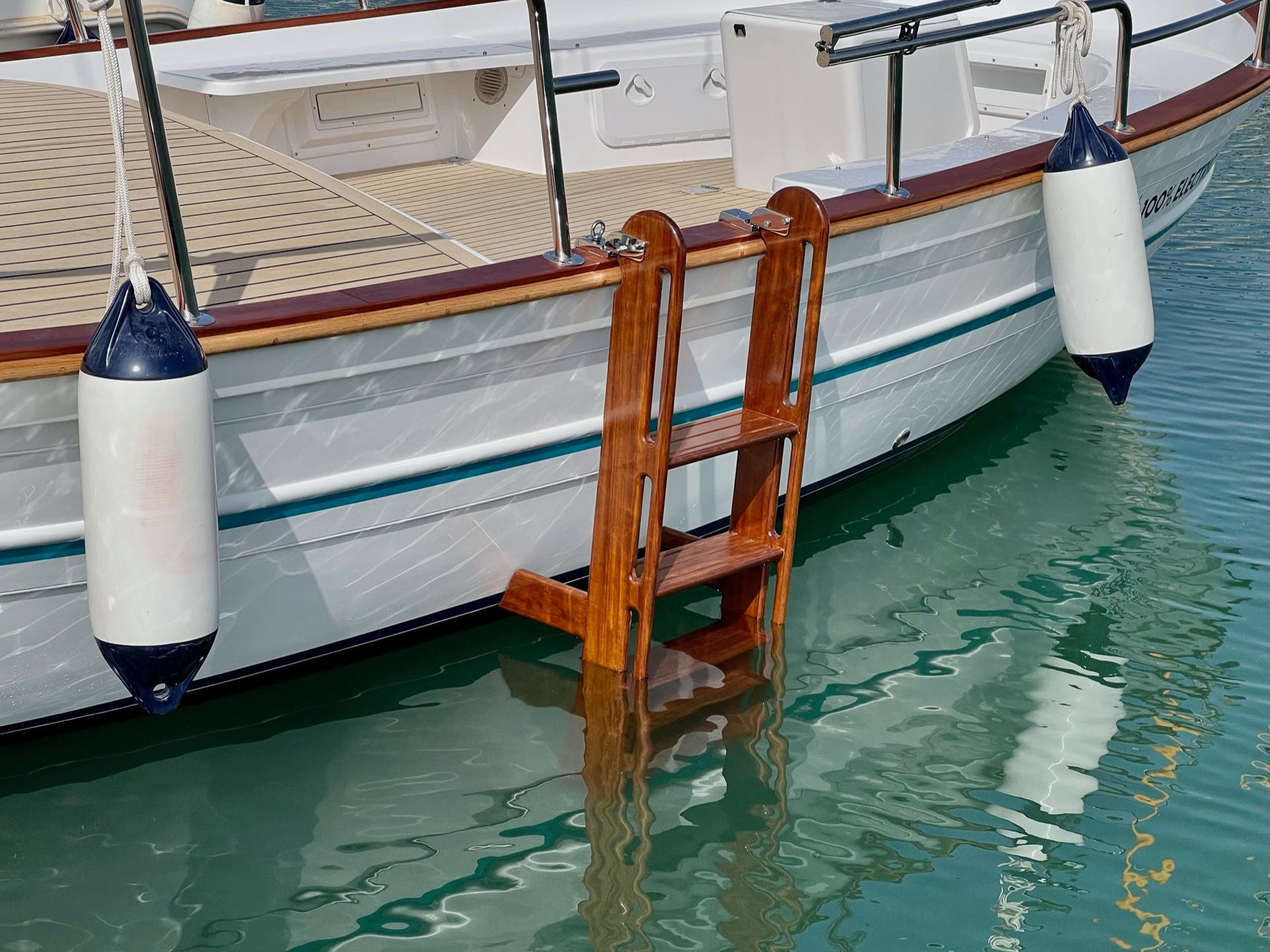

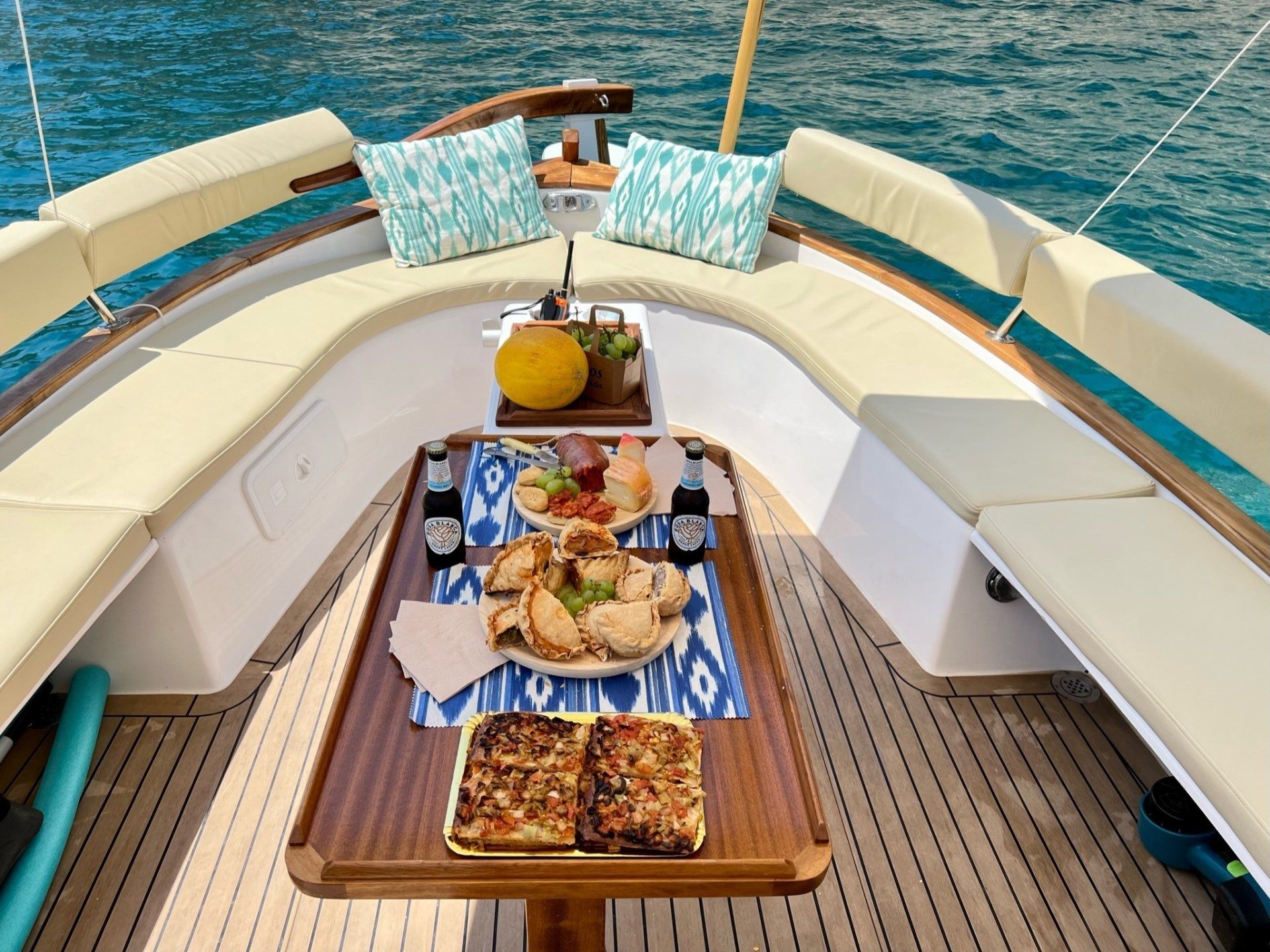

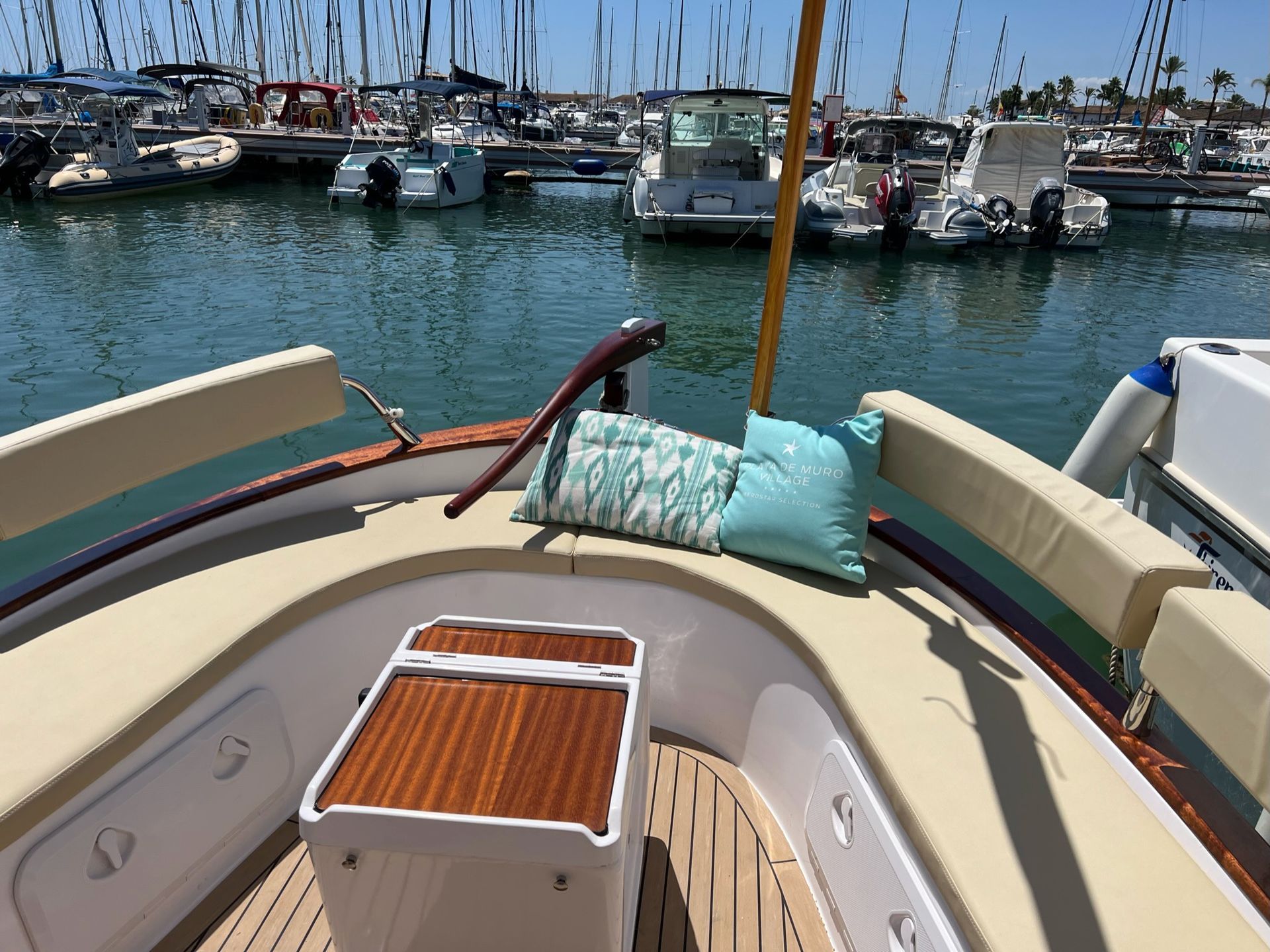

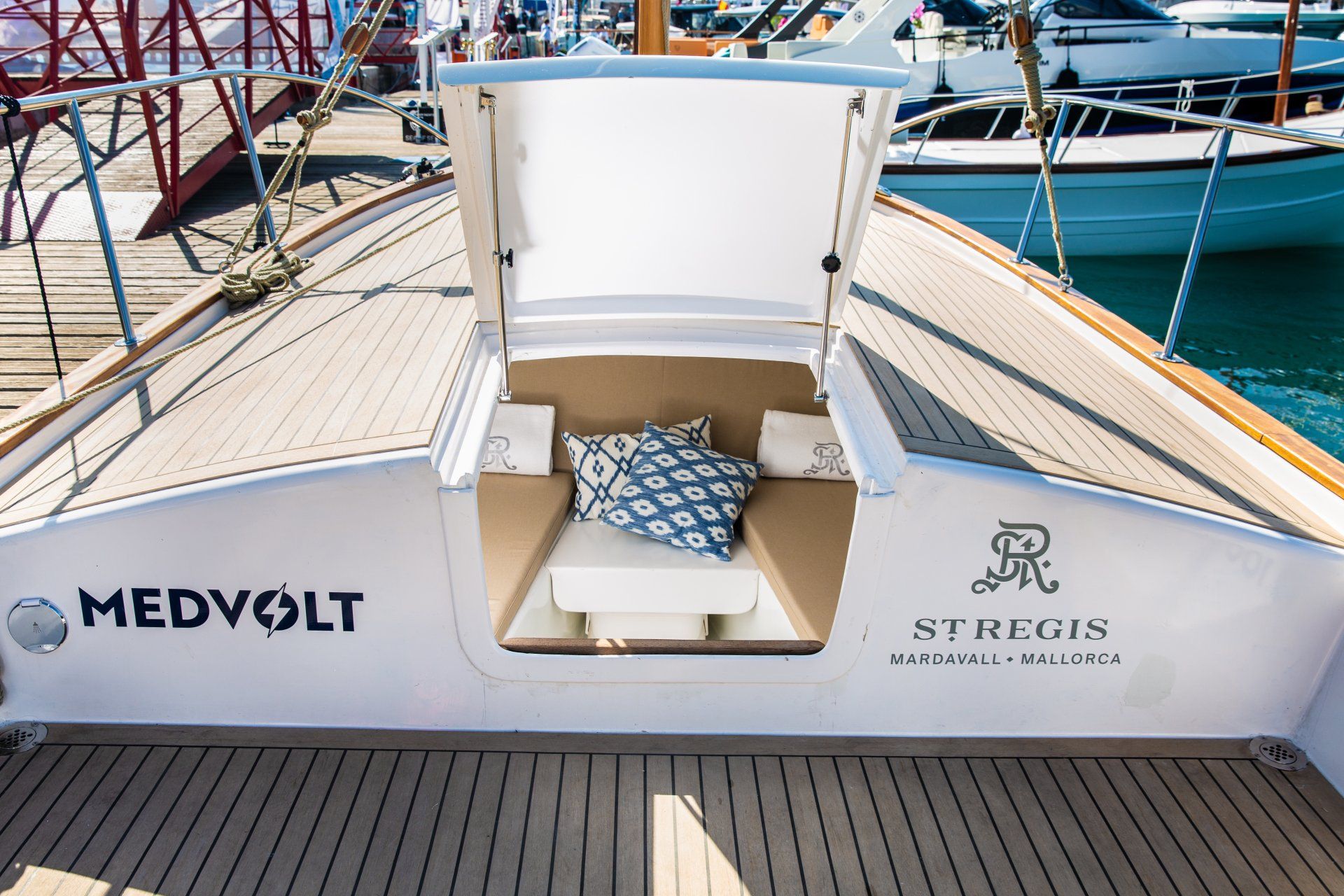

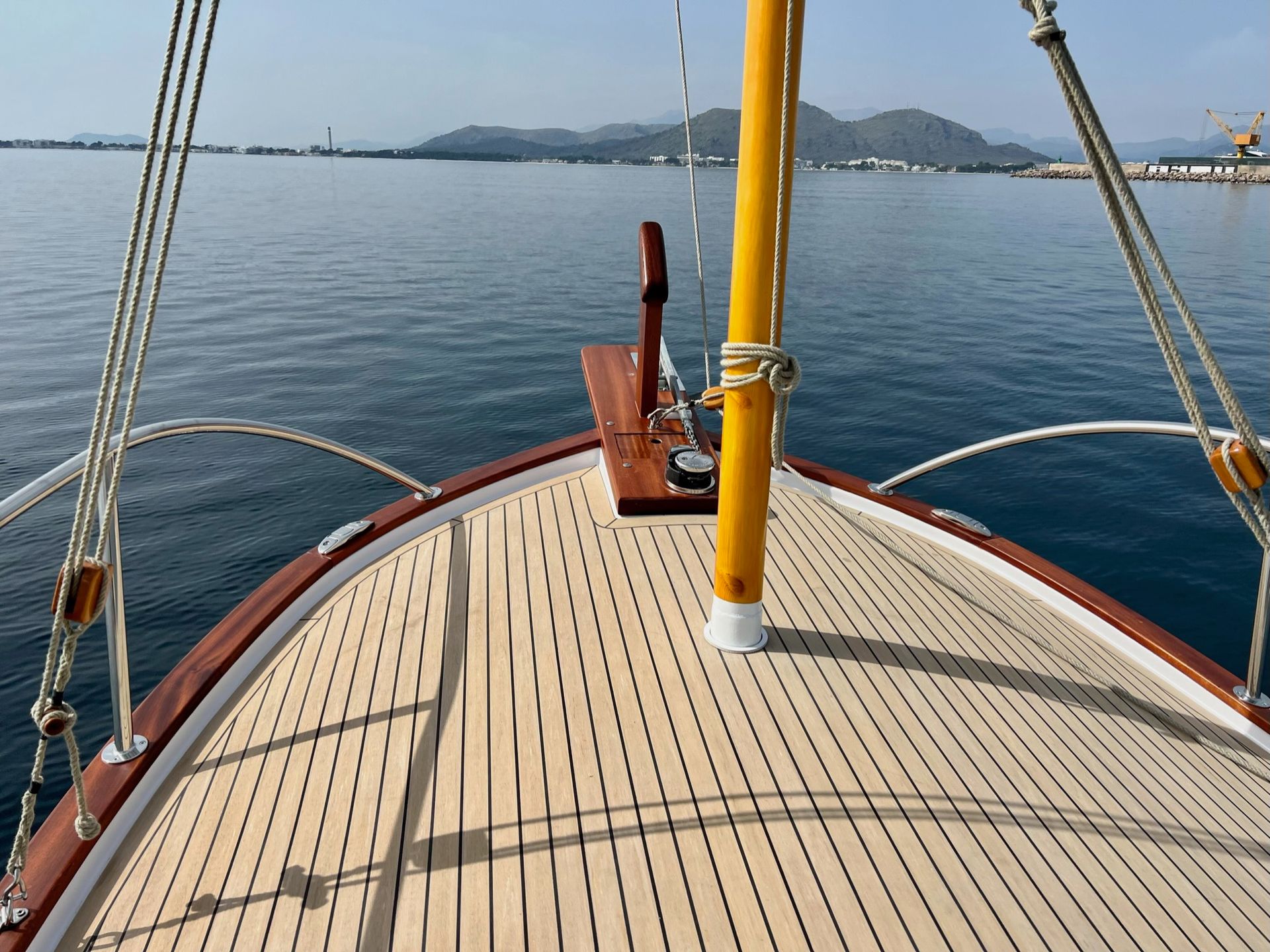

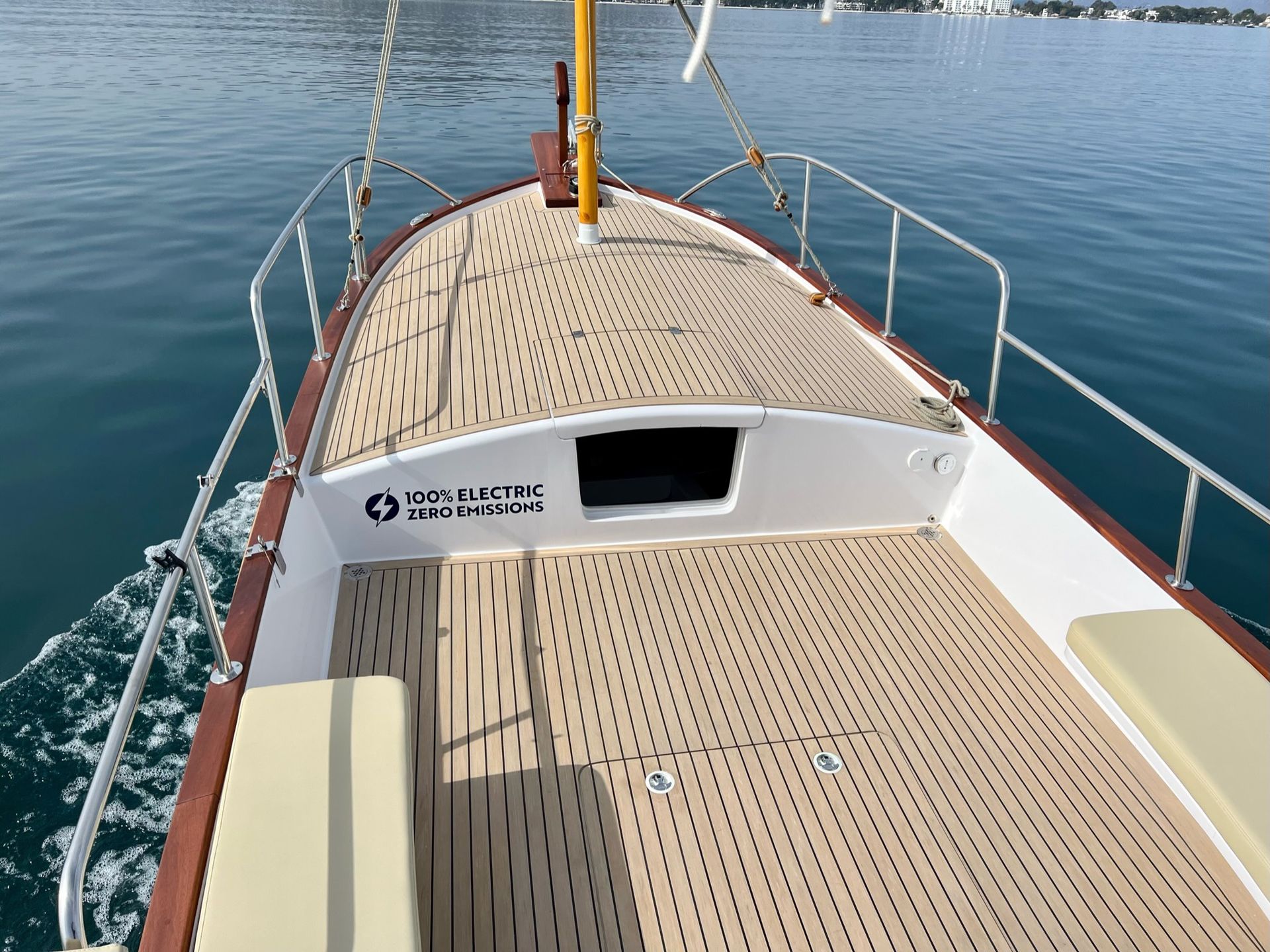

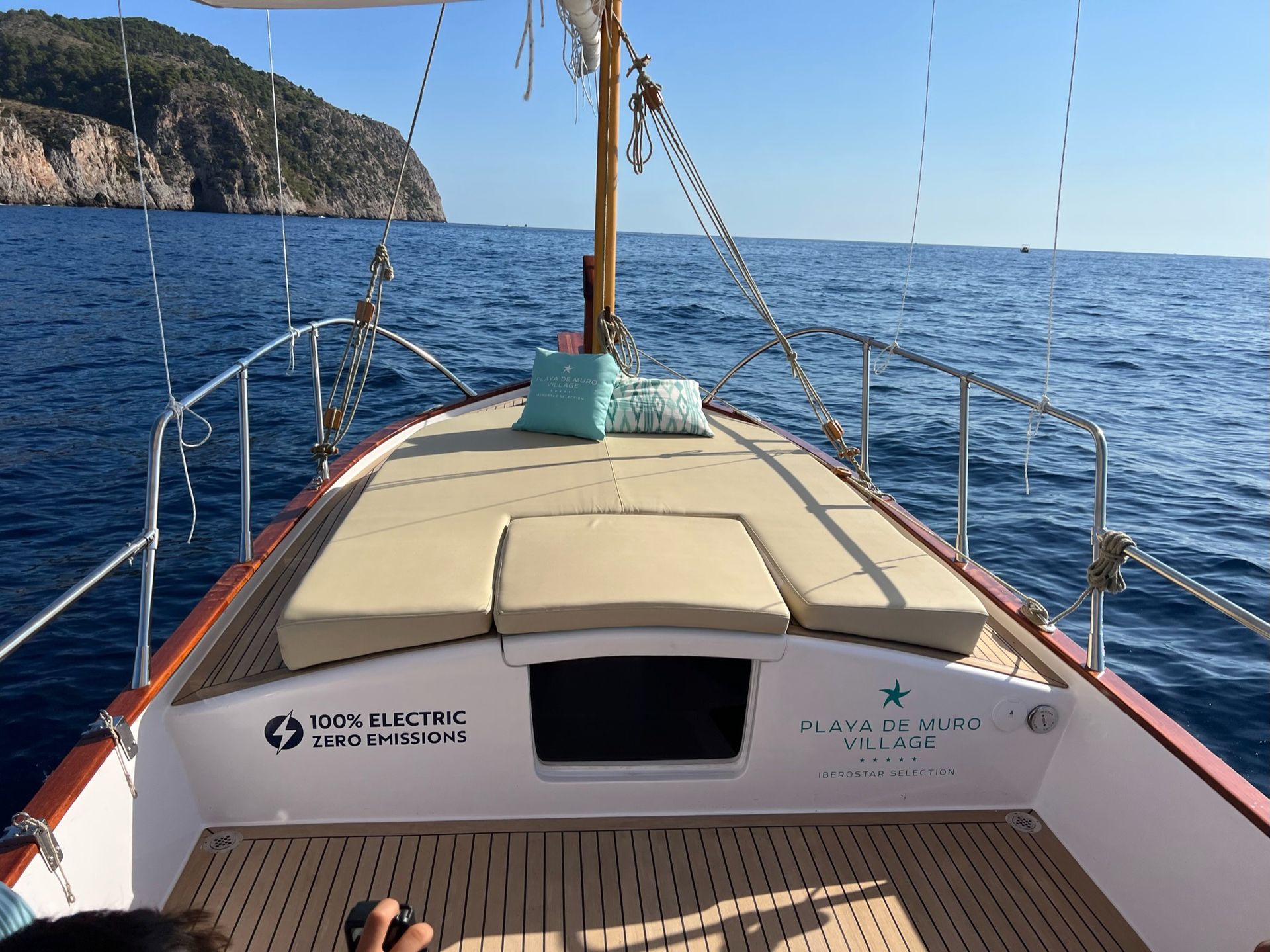

Designed to enjoy the Mediterranean coasts through a traditional experience, sailing both by sail and by electric motor, without noise, without smoke and above all respecting the environment. The developed Llaut, with a length below 8 meters, is ideal for anchoring and mooring in Mallorca. It has a clear deck that is easy to maintain, but with everything you need to enjoy a day of sailing for groups of up to 8 people. It has a large bench, a folding table to eat comfortably and a small toilet in the bow cabin. And a stern platform for comfortable access to the sea. And above all, being a shipyard we have the ability to customize and adapt the Llaut to the needs and imagination of our customers.

SPECS

Length: 7.30 m
Beam: 2.60 m
Draft: 0.70 m
Displacement: 1.4 t
Capacity: 8 passengers

ENGINE

Engine: 10 kW marine electric
Batteries: 20.000 Wh high-performance lithium batteries
Instruments: computer with touch screen
Autonomy: up to 8 hours at 5,5 knots
Maximum speed: 7 knots

AUTONOMY

There are multiple options for motorisation and battery bank capacity. The following is a suggested configuration, but can be adapted to the needs of each customer.

Engine: 10 kW marine electric motor

Batteries: 4 x 5,000 Wh batteries, total 20 kW

Sped (knots)	Hours of sailing	Range Miles
4,5	12 h	55
5	9 h	45
5,5	6 h	30
6	4 h	24

* The range calculation is made by measuring the engine consumption in Kw at each speed. In good weather and calm seas. For safety reasons, it is recommended not to discharge the batteries to 100%, so the recommended range is always somewhat lower than the real range. We will periodically update the range calculations according to the improvements that are introduced in the production.
